6N137单通道光电耦合器包含850 nm AlGaAS LED,与具有可选通输岀的超高速集成光电检测器栅极光耦合。该输岀具有开路集电极,从而允许有线OR输岀。在-40°C至+85°温度范围內可确保耦合参数。5mA的最大输入信号将提供13mA的最小输岀灌电流。內部噪声屏蔽提供卓越的共模抑制。
Part Number | Status | Package | Description | Data Rate (Mbps) | Channels | VCC (max) (V) | VCC (min) (V) | VTM (max) (V) | Static dV/dt (min) (V/us) | IFT (max) (mA) | VOL (max) (V) | VISO (min) (V) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

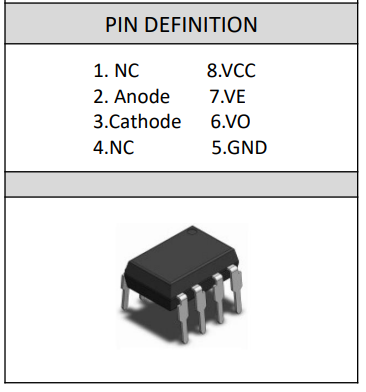

| CPH6N137 | Active | DIP8 | 8-Pin DIP 10 Mbit/s Single-Channel High Speed 3.3V Logic Gate Output Optocoupler | 10 | 1 | 5.5 | 4.5 | 2.5 | 1000 | 5 | 0.6 | 5000 |
| CPH6N137E | Active | SMD8 | 8-Pin SMD 10 Mbit/s Single-Channel High Speed 3.3V Logic Gate Output Optocoupler | 10 | 1 | 5.5 | 4.5 | 2.5 | 1000 | 5 | 0.6 | 5000 |
