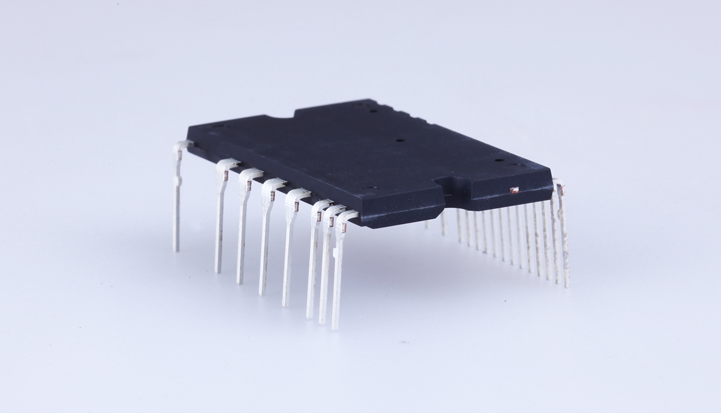

DIP25-FP 是IPM模块DIP封装系列，产品采用超小低热阻封装技术，实现智能功率模块小型化,内部集成过电压，过电流和过热等故障检测电路，带有BSD功能，提供温度模拟输出功能(可选)，可代替散热器上的热敏电阻，方便系统布局并降低使用成本。
| Product Group | Product Name | Vces [V] | Vce(on) [V] | Ic [A] | Icp [A] | Vf [V] | Pc [W] | Fpwm [KHz] | Viso [KV] | OTP Point (℃) | BSD | DataSheet |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IPM DIP25-FP | SPE20S60F-E | 600 | 1.65 | 20 | 40 | 2.3 | 50 | 20 | 2.5 | Analog output | √ | DataSheet |
| IPM DIP25-FP | SPE20S60F-A | 600 | 1.65 | 20 | 40 | 2.3 | 36 | 20 | 2.5 | Analog output | √ | DataSheet |
| IPM DIP25-FP | SPE15S60F-E | 600 | 1.6 | 15 | 30 | 2.5 | 39 | 20 | 2.5 | Analog output | √ | DataSheet |
| IPM DIP25-FP | SPE15S60F-A | 600 | 1.6 | 15 | 30 | 2.5 | 30 | 20 | 2.5 | Analog output | √ | DataSheet |
| IPM DIP25-FP | SPE10S60F-A | 600 | 1.7 | 10 | 20 | 1.6 | 24 | 20 | 2.5 | Analog output | √ | DataSheet |
| IPM DIP25-FP | SPE06S60F-A | 600 | 1.95 | 6 | 12 | 1.6 | 23 | 20 | 2.5 | Analog output | √ | DataSheet |
| IPM DIP25-FP | SPE05M50F-A | 500 | 1.4ohm | 2.5 | 5 | 1 | 26 | 20 | 2.5 | Analog output | √ | DataSheet |
