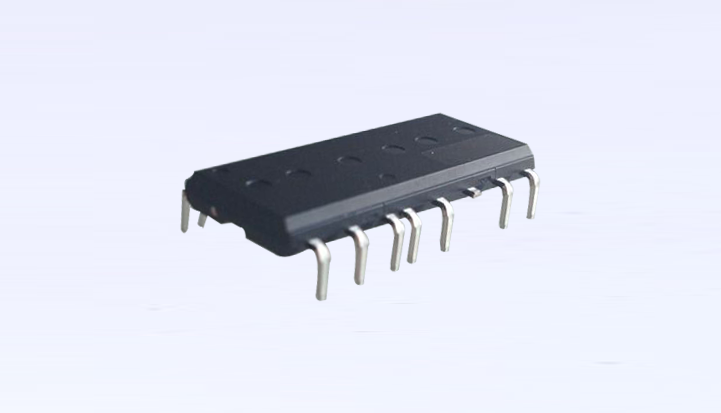

DIP23-FP 是IPM模块DIP封装系列，产品集成低损耗功率开关MOSFET、BSD、驱动IC及各种保护结构，产品封装结构紧凑，方便系统PCB layout，能很好的应用于低功率的工业及家电领域，如小功率的风扇、泵机、电动工具、洗衣机等。
| Product Group | Product Name | BVdss [V] | Rds(on) [ohm] | Id [A] | Idp [A] | Vf [V] | Pc [W] | Fpwm [KHz] | Viso [KV] | BSD | DataSheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
| IPM DIP23-FP | SPE05M50T-AN | 500 | 1.25 | 2.4 | 5 | 1.3 | 16 | 20 | 1.5 | √ | DataSheet |
| IPM DIP23-FP | SPE05M50T-A | 500 | 1.25 | 2.4 | 5 | 1.3 | 16 | 20 | 1.5 | √ | DataSheet |
| IPM DIP23-FP | SPE04M50T-A | 500 | 1.4 | 2 | 4 | 1.5 | 15.6 | 20 | 1.5 | √ | DataSheet |
| IPM DIP23-FP | SPE02M50T-A | 500 | 2.5 | 1.2 | 2 | 1.4 | 14.2 | 20 | 1.5 | √ | DataSheet |
| IPM DIP23-FP | SPE05M50T-CN | 500 | 1.25 | 2.4 | 5 | 1.3 | 16 | 20 | 1.5 | √ | DataSheet |
| IPM DIP23-FP | SPE05M50T-C | 500 | 1.25 | 2.4 | 5 | 1.3 | 16 | 20 | 1.5 | √ | DataSheet |
| IPM DIP23-FP | SPE04M50T-C | 500 | 1.4 | 2 | 4 | 1.5 | 15.6 | 20 | 1.5 | √ | DataSheet |
| IPM DIP23-FP | SPE02M50T-C | 500 | 2.5 | 1.2 | 2 | 1.4 | 14.2 | 20 | 1.5 | √ | DataSheet |
