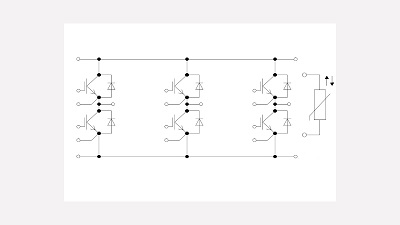

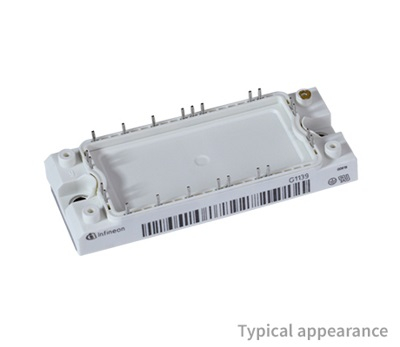

EconoPACK™ 2 1200 V, 75 A sixpack IGBT module with fast TRENCHSTOP™ IGBT4, Emitter Controlled 4 diode and NTC (alternative mechnically compatible to an IGBT3 module).
Summary of Features:
Low VCEsat
Tvj op = 150°C
VCEsat with positive temperature coefficient
Al2O3 substrate with low thermal resistance
High power and thermal cycling capability
Integrated NTC temperature sensor
Copper base plate
Standard housing
Benefits:
Compact module concept
Optimized customer’s development cycle time and cost
Configuration flexibility
Target Applications:
Motor control and drives
Industrial heating and welding
Room air conditioners
